Brand：Honeywell
Model：HVCD-2500IVKS
Focal Length 2.8 ~ 12mm, MFZ
HVCD-2500IVKS 2MP IR Dome Network Camera
Honeywell HVCD 2500IVKS IR Dome Network Camera, it combines with the world-class
imaging technology and cameras technology with innovative IP networking technology.
Provide users with 1080P high quality images.
The HVCD -2500IVKS HD IR Dome Camera Network Camera is the ideal solution for
advanced surveillance with its high-quality image quality.
Built-in 2.8 12mm MFZ lens, it allows users to adjust the lens to the best angle
according to site monitoring environment.
HVCD -2500IVKS has built-in IR. The maximum IR distance is 60 meters. Provide users
with clear black and white images in low light or all black environments.
The HVCD 2500IVKS supports PoE Ethernet (IEEE802.3af), which can directly
supply power to the network camera through the network cable, helping users to save
the use of the power adapter and effectively reduce the installation cost. To increase
the installation flexibility of the HVCD 2500IVKS, the network camera also supports
DC12V and AC24V power supply.
Honeywell HVCD- 2500IVKS support 1080P HD video, H.265 efficient compression,
POE Ethernet power supply and ONVIF network interface, it still can provide FHD realtime
video even in a limited bandwidth environment. Dome appearance design makes
it the ideal choice all kinds of security, monitoring application, and widely used in all
kinds of indoor and outdoor venues, such as road, airports, schools, shopping malls,
hotels, and bank branches, enterprises and organs, retail stores, building corridor, etc.
FEATURES
? 1/2.8” Progressive Scan CMOS
? Support 1920 x 1080@25fps
? Support H.265/ H.264/ MJPEG
? Ture Day/ Night switch
? 120dB WDR
? Up to 60m IR distance
? 2.8 ~ 12mm MFZ lens
? Auto Focus
? Support 128GB on-board storage
? IP67, IK10
? ONVIF
? 12VDC/ 24VAC/ PoE
SPECIFICATION
Model HVCD -2500IVKS
Image Sensor 1/2.8” Progressive Scan CMOS
Min. Illumination
Color: 0.01Lux@F1.2 (AGC ON), 0.02Lux@F2.0 (AGC ON)
B/W: 0.001Lux@F1.2 (AGC ON), 0.002Lux@F2.0 (AGC ON), 0Lux (IR On)
Shutter Speed 1/3 ～ 1/100,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Focal Length 2.8 ~ 12mm, MFZ
FOV Horizontal: 99.6° ~ 35° , vertical: 53.5° ~ 20° (wide-tele)
Aperture F2.0
IR Range Up to 60m
IR Wavelength 850nm
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps
Sub Stream: 50Hz: 704 × 576@25fps; 60Hz: 704 × 480@30fps
Third Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps (refer to main stream setting)
H.265 Type Main Profile
H.264 Type Baseline Profile/ Main Profile / High Profile
Video Bit Rate 32Kbps ~ 8Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32~192Kbps (MP2L2)
Audio & Video Function
Image Enhancement BLC, 3D DNR
Image Settings Image rotation, saturation, brightness, contrast, sharpness, corridor mode
ROI Support 1 region for main stream
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal
Detection, Unattended Baggage Detection
Environment Noise
Filtering
Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6,
UDP, Bonjour
ONVIF ONVIF(Profile S, Profile G)
Web Browser IE8 or above
Simultaneous Live View 6 channels
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 2 x Alarm in, 2 x Alarm out
Video Output 1 x BNC
Audio Output 1 x Audio input, 1 x Audio output, mono sound
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SPECIFICATION
Model HVCD- 2500IVKS
General
Operating Temperature 30° C ～ 60° C
Operating Humidity 95% (non-condensing)
Protection Level IP67, IK10
Power Supply DC12V/ PoE (802.3af, Class 3)
Power Consumption Max. 12W
Material Bubble: plastic; Body: Metal
Dimensions Φ 141 × 99.9 mm
Weight 800g
*Note: Honeywell reserves the right, without notification, to make changes in product
design or specifications
HVCD -2500IVKS 2MP IR Dome Network Camera, 1/2.8” Progressive Scan CMOS,
H.265/ H.264/ MJPEG, TDN, 60m IR, 120dB WDR, 1920 ×
1080@25fps, IVA, support 128GB on-board storage, ONVIF, IP67,
IK10 12VDC/ 24VAC/ PoE

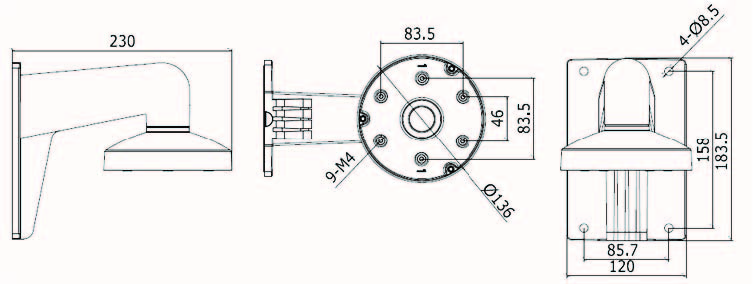

HVCD- AWM Wall mount bracket for HVCD -2500IVKS

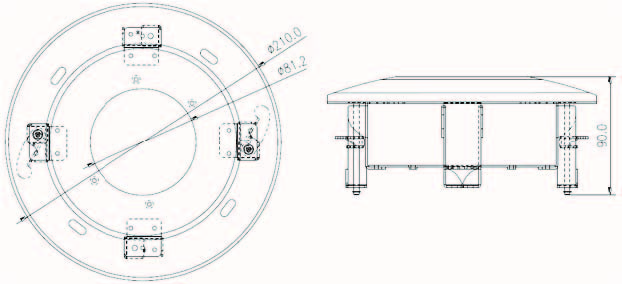

HVCD- AICM In Celling mount bracket for HVCD -2500IVKS
