Brand：Pelco
Model：CM6700-MXB2-X

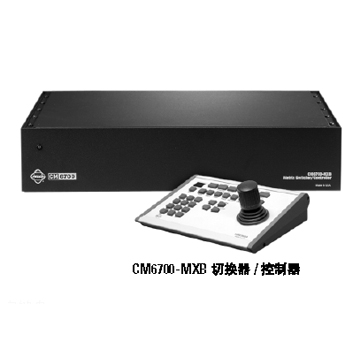

CM6700-MXB2-X Pelco CM6700 Series Matrix
CM6700 Series Matrix
MICROPROCESSOR-BASED SWITCHER/CONTROLLER, 16 X 2/4
Product Features
? 16 Video Inputs; 2 or 4 Video Outputs
? 20-Character Camera Title
? Time (24-Hour or AM/PM Formats); Date (4 Formats)
? Alarm Display Call-up from 18 Direct-Connect Alarm Inputs
? Video Inputs Individually Selectable for Terminating or Looping
? Coaxitron® Compatible
? Individual Monitor Sequential Switching with Preset Call
? Compatible with RS-422 Pelco D or Pelco P Protocol
? Camera Control Selection: Coaxitron® or RS-422; Individually Selectable per Camera
? Control Genex® Multiplexers
? Selectable Data Port: RS-232/RS-422/RS-485
? Password-Protected Menu Configuration
? User Partitioning to Prevent Unauthorized Viewing
? Compatible Keyboards:
– Switcher Only (KBD100)
– Switcher Plus Multi-Speed Control, Presets, Patterns, Receiver Auxiliary (KBD200A)
– Switcher Plus 3-Axis Joystick for Variable Speed PTZ Control, Presets, Patterns, Receiver Auxiliary (KBD300A)
? Optional CM6700-VMC Two-Monitor Expansion Card
? Includes Spanish-Language Menus
The KBD100, KBD200A, and KBD300A keyboards have been engineered for use with the
CM6700 matrix switcher. Each keyboard in the series offers a different level of control and
functionality in order to provide maximum versatility in every application.
KBD100
Our most economical keyboard, the KBD100 features limited CM6700 matrix control for
operator locations where PTZ functions are not intended or not required. Features include
configuration capabilities, camera and monitor call-up, operation of sequences and
patterns, and three function keys to allow local auxiliary activation.
KBD200A/KBD300A STANDARD FEATURES
The KBD200A and KBD300A full-feature keyboards offer PTZ control, configuration
capabilities, camera and monitor call-up, operation of sequences and patterns, and local
auxiliary activation. Added function keys allow control of receiver auxiliaries. The function
keys have dual selections to allow remote control of multiplexer functions when a Pelco
MX4000 Series multiplexer is used in conjunction with the CM6700 matrix switcher.
These keyboards can be configured for Direct Mode operation; see below.
KBD200A/KBD300A EXCLUSIVE KEYBOARD FEATURES
This economical keyboard features “Touchspeed” multi-speed control of variable speed receivers.
The KBD200A additionally features an ASCII Mode, included specifically for phone line
video applications. KBD200A ASCII Mode allows complete operational control of the
CM6700 matrix switcher through the ASCII port (configuration not supported). When
configured for ASCII Mode control, the KBD200A outputs RS-422 ASCII protocol at
9600 baud. This configuration requires the KBDKIT and, in some cases, the PV140 RS-232
to RS-422 converter.
The KBD300A keyboard features a 3-axis, vector-solving joystick that includes a twisting,
return-to-center head for precise, single-hand control of PTZ functions.
DIRECT MODE RECEIVER CONTROL
The KBD200A and KBD300A keyboards can be alternately configured for Direct Mode
operation. Each keyboard requires a remote keyboard wiring kit (KBDKIT) for Direct Mode
operation.
Direct Mode control is a feature that allows 2-wire control of up to 16 daisy-chained
receivers directly from the keyboard.
When configured for Direct Mode control, keyboards output Pelco P protocol at 4800 baud.
Direct Mode control features include configuration and call-up of presets, full PTZ control
of variable speed receivers, and activation of receiver auxiliaries.
The KBD300A automatically recognizes the configured mode (Direct or CM6700).
SWITCHER
GENERAL
Memory Protection Replaceable lithium battery provides data
protection for ten years
Keyboard Capacity 8
Receiver/Dome Control Coaxitron® and RS-422
Alarm Inputs 18, configurable (includes presets and N.O./
N.C. device)
Alarm Relay Outputs 1, DPST
Rating 0.5 A at 125 VAC
General Purpose Outputs 2, open collector; 32 VDC max., 25 mA max.
Data Ports 2
Receiver RS-422, Pelco D protocol 2400 baud,
Pelco P protocol 2400 to 9600 baud
Data (Computer) RS-232/RS-422/RS-485, 1200 to 19.2K baud
Keyboard Ports 2
Local Port Provides data and 12 VAC power for one
keyboard
Remote Port Data only port for all additional or remote
keyboards; each keyboard connected to this
port requires a KBDKIT
Dimensions (switcher only) 10.5" D x 17.0" W x 3.5" H
(26.67 x 43.18 x 8.89 x cm)
Mounting (switcher only) Factory configured for EIA rack mount (2 RUs);
rack ears can be removed for wall mount or
freestanding applications
Weight Unit Shipping
CM6700-MXB2 9.46 lb (4.28 kg) 13 lb (5.88 kg)
CM6700-MXB4 10.22 lb (4.62 kg) 14 lb (6.34 kg)
KEYBOARD COMMUNICATION
6700 Mode (KBD100/200A/300A)
Interface RS-485
Protocol Pelco ASCII
Baud Rate 9600
Communication
Parameters 8 data bits, odd parity, 1 stop bit
Direct Mode (KBD200A/KBD300A)
Interface RS-422
Protocol Pelco P
Baud Rate 4800
Communication
Parameters 8 data bits, no parity, 1 stop bit
ASCII Mode (KBD200A)
Interface RS-422
Protocol Pelco P
Baud Rate 9600
Communication
Parameters 8 data bits, odd parity, 1 stop bit
MODELS
Matrix Bay
CM6700-MXB2 Switcher/controller. 16 inputs, 2 outputs,
NTSC, 120 V, 50/60 Hz
CM6700-MXB2-X Switcher/controller. 16 inputs, 2 outputs, PAL,
230 V, 50/60 Hz
CM6700-MXB4 Switcher/controller. 16 inputs, 4 outputs,
NTSC, 120 V, 50/60 Hz
CM6700-MXB4-X Switcher/controller. 16 Inputs, 4 outputs, PAL,
230 V, 50/60 Hz
Keyboards
KBD100* Desktop keyboard, switcher only (25-foot
cable supplied)
KBD200A* Desktop keyboard, multi-speed PTZ, (25-foot
cable supplied)
KBD300A* Desktop keyboard, variable-speed PTZ,
(25-foot cable supplied)
*If distance between switcher and keyboard exceeds 25 feet, use
KBDKIT/KBDKIT-X.
Note: In addition, the KBD200A and KBD300A keyboards provide control
capabilities for Pelco multiplexers. The function key icons shown are active
only when used in conjunction with an appropriate Pelco multiplexer.
CERTIFICATIONS/RATINGS
? CE compliant (CM6700-MXB2-X, CM6700-MXB4-X, CM6700-VMC2-X,
KDB100, KDB200A, KDB300A, and KBDKIT-X)
? FCC, Class A (CM6700-MXB2, CM6700-MXB4, CM6700-VMC2, KBD100,
KBD200A, and KBD300A)
? UL/cUL Listed (CM6700-MXB2, CM6700-MXB4, KBD100, KBD200A, and
KBD300A)
? Meets NEMA Type 1 standards
OPTIONAL ACCESSORIES
CM9760-CDU-T Code distribution unit; 16-channel RS-422
transmit only (2 data wires and ground)
distributor. Primarily used for configuring up
to 16 pan/tilt/zoom receivers in a “star”
configuration.
CM6700-VMC2 2-monitor output expansion card (NTSC).
Expands a CM6700-MXB2 to a four-monitor
system and features easy installation and
plug-and-play functionality.
CM6700-VMC2-X 2-monitor output expansion card (PAL). Use
with CM6700-MXB2-X.
KBDKIT Remote keyboard wiring kit. Required if
connecting KBD200A or KBD300A keyboards
to the Remote Keyboard Port on the SCU
(6700 Mode) or when using a single keyboard
in Direct or ASCII Mode applications. Includes
two RJ-45 wall blocks and one 120 VAC to
12 VAC transformer. Maximum cable distance
for RS-422/RS-485 communication over
24-gauge wire is 4,000 feet (1,219 m). Use
shielded twisted pairs cable that meets basic
requirements for RS-422/RS-485
applications. (One wall block and transformer
required for each keyboard.)
KBDKIT-X Same as KBDKIT except includes 230 VAC to
12 VAC transformer
PV140 RS-422 to RS-232 interface converter and power supply
