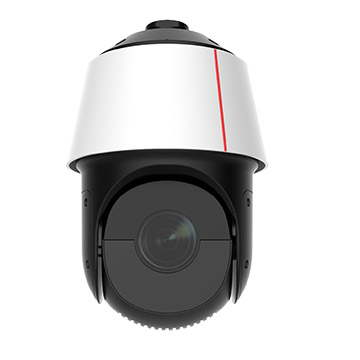

C6620-Z33 Huawei 2MP Starlight IR PTZ Dome Camera

Brand：Huawei Holosens
Model：C6620-Z33
Lens:5-165mm

Detail

C6620-Z33 Huawei 2MP Starlight IR PTZ Dome Camera
Supports heat map
1/2.7" CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast.

CPU Hi3516A V100
Memory DDR3 0.2500 GB
Flash type SPI NAND Flash 128.0 MB
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7"
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 5–165 mm
Angle of view Horizontal: 2.4° (T) to 59° (W); vertical: 1.4° (T) to 33.6° (W)
IR range 150 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
PTZ rotation angle Pan: 0° to 360° Tilt: –15° to +90°
Pan speed Manual: 0.1–160°/s; preset position: 240°/s
Tilt speed Manual: 0.1–120°/s; preset position: 200°/s
Heat map Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 23 W; typical: 9.5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66CPU Hi3516A V100
Memory DDR3 0.2500 GB
Flash type SPI NAND Flash 128.0 MB
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 5-165mm
Angle of view Horizontal: 2.4° (T) to 59° (W); vertical: 1.4° (T) to 33.6° (W)
IR range 150m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
PTZ rotation angle Pan: 0° to 360° Tilt: –15° to +90°
Pan speed Manual: 0.1–160°/s; preset position: 240°/s
Tilt speed Manual: 0.1–120°/s; preset position: 200°/s
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 23 W; typical: 9.5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Shutter speed Supports slow shutter Slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15 Non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Default value: 1/25
Day/Night mode Supported; automatic (ICR)/Color/B/W (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
Gain control Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default: 0)
White balance Auto/Auto tracking/Manual/OnePush
Digital noise reduction 2D/3D noise reduction
WDR 120 dB
Highlight compensation Supported
Image stabilization Supported Sensitivity levels are not supported.
Defogging Supported
Exposure compensation Supported
Exposure mode Supported
SNR > 45 dB
Motorized focus Supported
Day/Night focus compensation Supported
Image correction Vertical, horizontal, or both
Digital zoom Supported
Privacy mask Supported
Focal length 5-165mm
Max f-number F1.6 (W) to F4.4 (T)
Lens aperture type DC-Iris
Angle of view Horizontal: 2.4° (T) to 59° (W); vertical: 1.4° (T) to 33.6° (W)
Built-in IR illuminator Supported
IR range 150m
Video encoding format MJPEG/H.264/H.265
Video encoding channels Triple streams
Primary stream resolution 1920 x 1080 (1080p), 1280 x 720 (720p), 720 x 576 (PAL), and 720 x 480 (NTSC)
Secondary stream resolution Secondary stream 1: 1920 x 1080 (1080p), 1280 x 720 (720p), 720 x 576 (PAL), 720 x 480 (NTSC) Secondary stream 2: 720 x 576 (PAL), 720 x 480 (NTSC), 352 x 288 (PAL), 352 x 240 (NTSC)
Video frame rate Configurable (60 fps, 50 fps, 30 fps, or 25 fps); default: 25 fps; the frame rate can be set to 60 or 50 fps only in single stream mode.
Video bit rate Only for H.264 and H.265: 1080p to 4K: 512 kbit/s to 16 Mbit/s 720p: 384 kbit/s to 8 Mbit/s D1: 256 kbit/s to 4 Mbit/s CIF: 32 kbit/s to 1 Mbit/s
Intelligent encoding Extra265/264
Region of Interest (ROI) Each channel supports a maximum of four ROIs. The image quality in an ROI is configurable from 0 to 10 (step: 1).
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8 kHz OPUS: 8/12/16/24/48 kHz
Audio bit rate G.711a/G.711u: 64 kbit/s, G.726: configurable (16/24/32/40 kbit/s); OPUS: configurable (16/24/32/40/64/96/128/160/192/224/256/288 kbit/s)
PTZ rotation angle Pan: 0° to 360° Tilt: –15° to +90°
Pan speed Manual: 0.1–160°/s; preset position: 240°/s
Tilt speed Manual: 0.1–120°/s; preset position: 200°/s
Park action Supported
Tour Supported
Preset position 256 (including one home position)
Home position One home position
SD card port MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256 GB
Audio-in port Supported (one-channel LINE IN or one-channel external MIC)
Audio-out port Supported (one-channel LINE OUT)
Boolean port Supported,2 input ports and 1 output port
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Access protocol GB/T 28181 (2011, 2016)/SDK (proprietary protocol)/GA/T 1400
Protocols supported by IPv4 TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1X, QoS, and DDNS. Note: The DDNS uses the Oray (www.oray.com) scheme.
Protocols supported by IPv6 HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6
Services supported by IPv6 Web page: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration.
ONVIF: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration; does not support Wi-Fi probe.
Note: 1. IPv6 multicast is not supported.
2. DNS is not supported.
3. IP address conflict check is not supported.
User rights Three user roles: administrator, advanced operator, and common operator
Security mode User name and password authentication, 802.1X authentication, and HTTPS digital certificate
GB 35114 Supported
System intrusion detection Supported
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 23 W; typical: 9.5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
Surge protection 6 kV
IP rating IP66
Net weight 4 kg
Gross weight 5.3 kg
Device dimensions 201.6 mm x 310 mm x 201.6 mm
Package dimensions 295 mm x 400 mm x 295 mm
