Position

Home > Product > SONY Professional Products > SONY PTZ Remote Cameras

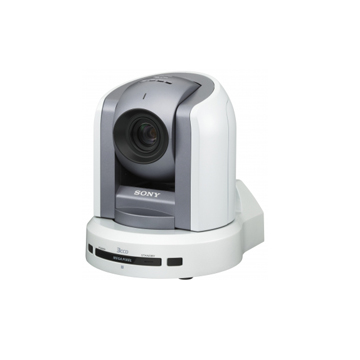

BRC-300P Three 1/4-inch 7-type Advanced CCD sensors all-in-one SD robotic compact camera

Brand:SONY

Model:BRC-300P

Detail

BRC-300P Three 1/4-inch 7-type Advanced CCD sensors all-in-one SD robotic compact camera
Accessories
BRBK-301
Analog RGB Component Card for BRC-300 & BRU-300

BRBK-302
SDI Card for BRC-300 & BRU-300

RM-BR300
Remote control unit for BRC series cameras

Specifications

Camera

Image Sensor

1/4.7-type IT Advanced HAD CCD x3

Image Sensor (Number of Effective Pixels)

Approx. 1.02 Megapixels

Image Sensor (Total Number of Pixels)

1.07 Megapixels

Signal System

BRC-300: NTSC
BRC-300P: PAL

Sensitivity

Minimum Illumination (25IRE)

7 lx (25IRE, F1.6, +18dB)

Horizontal Resolution

S/N Ratio

50 dB

Gain

Auto/Manual (-3 dB to +18 dB, 3 dB steps) switchable

Shutter Speed

BRC-300: 1/10,000 s to 1/4 s
BRC-300P: 1/10,000 s to 1/3 s

Exposure Control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, spot AE

Color AE Function

White Balance

Auto/Indoor/Outdoor/One-push/Manual

Optical Zoom

12x

Digital Zoom

Focusing System

Auto/Manual

Horizontal Viewing Angle

4:3 mode: 37.8°, 16:9 mode: 45.4°(Wide end)

Focal Length

f = 3.6 mm to 43.2 mm
F1.6 (Wide), F2.8 (Tele)

Minimum Object Distance

300 mm (Wide)
800 mm (Tele)

Pan/Tilt Angle

Pan: ±170°
Tilt: +90°/-30°

Pan/Tilt Speed

Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s

Preset Position

Camera Features

Auto ICR

Wide-D

Image Stabilization

Image Flip

On/Off

ND Filter

Color Gain

Color Hue

Color Matrix

Color Detail

Skintone Detail

Gamma

Gamma Level

Black

Black Gamma

Knee Point

Knee Slope

Knee Sat Level

Auto Focus Assist Function

Flicker Cancel

B&W

Color Bar

Interface

SD Video Output

VBS, Y/C

Camera Control Interface

RS-232C/RS-422
(VISCA)

External Sync. Input

Yes

General

Power Requirements

DC 12 V

Power Consumption

21.6 W (without optional cards)

Operating Temperature

0 °C to 40 °C
32 °F to 104 °F

Storage Temperature

-20 °C to +60 °C
-4 °F to +140 °F

Dimensions (W x H x D) *1

180 x 210.1 x 205 mm
7 1/8 x 8 3/8 x 8 1/8 inches

Mass

2.5 kg
5 lb 8 oz

Optional Card Slots

Yes

Body Color

White

Size of Screw Hole for Tripod

1/4-20UNC, depth 6.5

Mountable Angle

±15°

Ceiling Mount

Yes

Supplied Accessories

IR Remote Commander Unit (1)
AC power adaptor (1)
AC power cord (1)
RS-422 connector plug (1)
Ceiling bracket (2)
Wire rope (1)
Screws (7)
Operating instructions (1)

Notes

Note

*[1] The values for dimensions are approximate.
