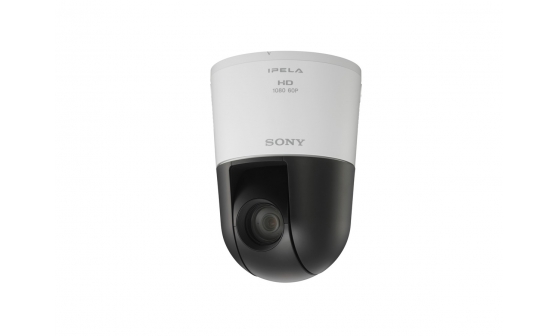

SNC-WR630 SONY 1080p Network Camera

Specifications
Camera
Image Sensor1/2.8-type progressive scan Exmor CMOS sensor
Number of Effective PixelsApprox. 2.38 Megapixels
Signal SystemNTSC/PAL (switchable)
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 0.4 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.03 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Minimum Illumination (30 IRE)Color: 0.24 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
B/W: 0.018 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)
Dynamic RangeEquivalent to 130 dB with View-DR technology
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto/Manual
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlFull auto, Shutter priority, Iris priority, Manual
White BalanceATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
LensAuto-focus zoom lens
Powered ZoomYes
Zoom RatioOptical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered FocusYes
Auto FocusYes
Horizontal Viewing Angle63.7° to 2.3°
Vertical Viewing Angle38.5° to 1.3°
Focal Lengthf = 4.3 mm to 129.0 mm
F-NumberF1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance300 mm
Pan/Tilt Angle (powered)360 ° endless rotation/220 °
Pan Speed700 °/s (max.) *1
Tilt Speed700 °/s (max.) *1
Number of Preset Positions256
Number of Tour Programs5
Camera Features
Day/NightTrue D/N
Wide-DView-DR
Tone CorrectionVisibility Enhancer
Defog Image ProcessingYes
Highlight CompensationYes
Noise ReductionXDNR
Image StabilizerElectronic
Picture ModeYes
Privacy Masking (number)24
Privacy Masking (shape)Quadrangle
Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Edge StorageYes
Compatibility with Cloud ServiceYes
Voice AlertYes
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish
Smartphone viewerYes
Video
Resolution1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184, (H.264, JPEG)
Compression FormatH.264 (High/Main/Baseline Profile), JPEG
Maximum Frame RateH.264: 60 fps (1920 x 1080)
JPEG: 60 fps (1280 x 720)
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 32 Mbps
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityYes (3)
Number of Clients20
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA Advanced
Intelligent Motion DetectionYes
Face DetectionYes
Tamper AlarmYes
Scene AnalyticsPassing, Intrusion, Left Object Detection, Removed Object Detection
Audio
Compression FormatG.711/G.726/AAC (16 kHz, 48 kHz)
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)
ProcessorIntel Corei7 2.8 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
*SSM (Source Specific Multicast) is supported.
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S, Profile T
AuthenticationIEEE802.1X
Interface
Analog Video OutputBNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative
480 TV lines
Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power
Line InputMini jack (monaural)
Line OutputMini jack (monaural) Maximum output level: 1 Vrms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x4, make contact, break contact
Alarm Outputx2, AC 24V/DC 24V, 1 A (mechanical relay outputs electrically isolated from the camera)
Serial InterfaceRS-422/RS-485 (PELCO D protocol)
Card SlotsSD x 1
Confirmed SD Card TypeMax. 64 GB
General
Power RequirementsIEEE802.3at compliant (HPoE system), AC 24 V, DC 12 V
Power Consumption25.0 W max.
Operating Temperature-5 °C to +50 °C
23 °F to +122 °F
Cold Start Temperature0℃ to +50℃
32°F to +122°F
Storage Temperature-20 ℃ to + 60 ℃
-4 °F to + 140 °F
Operating Humidity20 % to 80 %
Storage Humidity20 % to 95 %
Dimensions *2φ146.3 x 204.5 mm
φ5 7/8 inches x 8 1/8 inches
MassApprox. 1.7 kg
3 lb 12 oz
External MaterialBase cabinet: PC+ABS
Camera cabinet: PC+ABS
Side cabinet: PC+ABS
External ColorBase cabinet: 4.4BG 8.4/0.2
Camera cabinet: 3.9PB 0.3/1.0
Side cabinet: 3.9PB 0.3/1.0
Safety RegulationsJATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR
Supplied AccessoriesCD-ROM (supplied programs) (1)
Installation Manual (1)
Ceiling unit (1)
Ceiling bracket (1)
Fixing screws (M4 × 10) (3)
3-pin power connector (1)
BNC cable (1)
I/O cable (1)
Template (1)
Cable clamp (1)
Cable clamp fixing screws (M2.6 × 8, tapping screw) (2)
Optional AccessoriesYT-LD124C (Dome Cover Clear)
YT-LD124S (Dome Cover Smoked)
YT-ICB630 (In-ceiling Bracket)
Notes
*1Available when preset mode is On.
*2The values for dimensions are approximate.
