Brand:AXIS
Model:AXIS P5655-E
Lens
| Focal length | 4.3-137.6 mm |
| Horizontal field of view | 58.3-2.4 ° |
| Vertical field of view | 35.5-1.4 ° |

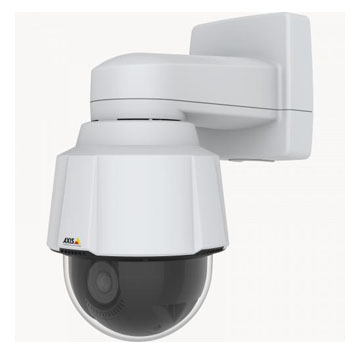

AXIS P5655-E PTZ Network Camera
Cost-effective PTZ for versatile surveillance
HDTV 1080p with 32x optical zoom
Forensic WDR and Lightfinder 2.0
Signed firmware and secure boot
Focus recall and EIS
Zipstream with support for H.264 and H.265
AXIS P5655-E PTZ Network Camera is a cost-effective high performance PTZ camera for versatile surveillance. Thanks to the newest generation of Axis chip, it offers excellent video quality, even in the most challenging light conditions, and a high level of defense to protect your system. It’s ideal for deterrent surveillance of large outdoor and indoor areas and provides great details when zooming in.
Axis IP camera vieweing an empty parking garage top at night
Great images – anytime
AXIS P5655-E offers superb image quality in HDTV 1080p with 32x optical zoom. It’s got Forensic WDR for clarity even when there’s both dark and light areas in the scene. And Lightfinder 2.0 for low-light images with more saturated colors and sharper images of moving objects. Additionally, it has electronic image stabilization (EIS) for stable images despite vibration. And focus recall gives you instant focus in challenging light conditions. Plus, it comes with four scene profiles (indoor, outdoor, forensic and traffic) with different image settings optimized to suit specific scenarios.
Axis IP camera vieweing a blue netowrk globe
Keeping you secure
This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
Axis IP camera vieweing brno in evening traffic
And there’s more…
This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements. It supports two-way audio, I/O ports, PoE+ and 24 V AC/DC.
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P5655-E 60 Hz / AXIS P5655-E 50 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.10 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version Autotracking 2
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 4.3-137.6 mm
Horizontal field of view 58.3-2.4 °
Vertical field of view 35.5-1.4 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range 180
Guard tour limited guard tour
Optical zoom 32
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
System Integration
Audio detection Yes
Active tampering –
Alarm inputs/outputs 4
Network
PoE Class 4
Security
Signed firmware Yes
Secure boot Yes
TPM –
