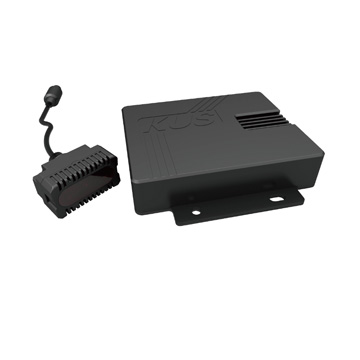

DMS (Driver Monitoring System): Using the images acquired by the DMS camera, the driver's driving behavior and physiological state are detected through technologies such as visual tracking, target detection, and motion recognition. In the case of dangerous situations such as smoking , the system will give an alarm within the set time of the system to avoid accidents, which can effectively regulate the driving behavior of drivers and greatly reduce the probability of traffic accidents.
Product Functions:
1. Eye-closed Warning 2. Fatigue Warning
3. Distraction Warning 4. Smoking Warning
5. Make Call Warning 6. Filter Glasses
7. Night Environment 8. Face Identification
9. Data Management
Product Specifications:
| Minimum Value | Typical Values | Maximum Value | Remarks | |
| Effective Speed Range | 0km/h | 180km/h | ||
| Warning Speed Range | 10km/h | 180km/h | Minimum warning speed can be adjusted within a certain range | |
| Detectable Head Level Attitude Angle | -45° | 45° | Zero when the head is vertically facing the camera | |
| Detectable Head Vertical Attitude Angle | -25° | 25° | Zero when the head is facing the camera horizontally | |
| Typical Warning Specification |
1. With 3s driver has eyes closed more than 40% 2. Yawning |
|||
| Maximum Duration of Warning | 1s | |||
| Alarm Blocking Time | 3s | The minimum warning time interval between two adjacent warning | ||
| User Interaction | When the alarm is triggered, the system will sound a warning | |||
| Make Call Warning | Call time is greater than 2s | |||
| Smoking Warning | Detection of driver's cigarette triggers an alarm | |||
| Distraction Warning |
Within 4s driver has looked around more than 80% Within 4s driver has looked down more than 80% |
|||
