Brand:Yuluo
Model:YL-F4-4005

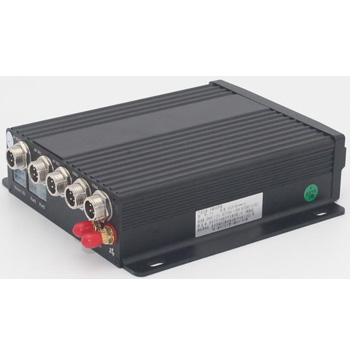

3G/4G Mobile Digital Video Recorder YL-F4-4005
3G functional Mobile Digital Video Recorder as well as GPS positioning technology specially designed for vehicle video surveillance. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression/decompression technology. It supports not only video recording in D1, Half D1 and CIF formats, but also vehicle travel information recording and local playback & analysis. It is powerful with flexible installation, easy maintenance and reliability.
Product Highlights
4 routes of video inputs,4 routes of audio inputs.
WCDMA、EVDO or TD-SCDMA,3 types of 3G GSM module can be choose.
Patent designation of card slots for protection.
Multiple intelligence interfaces which can be integrated with the original car data recorder.
Functions
Video function: adopt H.264 video compression technology; image resolution can be D1/Half D1/CIF.
GPS Function: GSP location, Geo-fence, SOS, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and AGPS function.
Double SD card slots: 2 Large SD cards capacity with each card of 128GB.
Multimedia analysis function: video history playback by certain requirements
Multi-server, Multi-IP: supports multiple IP address and can send message as well as the video to multiple servers.
iCloud: Support for remote fault diagnosis and debugging, remote automatic program maintenance, remote parameter configuration, remote "iCloud" to protect functions such as terminal operation statistics.
Standard Package
Main Device 1 pc
Key for SD card slot 2 pcs
GPS and GSM Antenna 1 pcs each
All-in-one configuration
cable 1 pcs
I/O cable 1 pcs
Parameters
|
Terminal Property |
|
|
Terminal |
Use Dual-core central processing chip |
|
Network |
EVDO /WCDMA/FDD-LTE/TDD-LTE |
|
Design |
Battery protection |
|
Circuit protection |
Three anti-paint protection |
|
Specification |
|
|
Working Voltage |
9～36 V/DC |
|
Highest Voltage |
100V/DC |
|
Storage Battery Voltage Protect |
Lowest：8.5V（12V Battery） or 17V(24V Battery) Highest：36V |
|
Anti-reverse Power |
100V |
|
Working current |
900mA@24V（4 way camera working） |
|
Backup battery |
820mAh |
|
Dimensions |
160×120×42mm (L x W x H) |
|
Port |
|
|
Input |
3 route inputs |
|
Output |
1 route low level: 250 mA @ DC 12V |
|
Voice interface |
1 route voice input 1 route voice output(RCA) |
|
Video Interface |
4 route video input(Aviation Plug) 1 route video output(RCA) |
|
Data Interface |
2 route RS232 port 1 route USB 1 route RJ45 |
|
SD storage |
2 routes SD card, single capacity maximal 128G |
|
Camera power supply interface |
4 route 12V/3A port( Aviation Plug) |
|
Environment features |
|
|
Temperature |
Work: -30 ℃ ～ +70 ℃ Storage:-40 ℃ ～ +85 ℃ |
|
Humidity |
5％ ～ 95％ Non-condensing |
|
Picture Specification |
|
|
Picture Format |
JPEG |
|
Picture Resolution |
QVGA320×240、VGA640×480 |
|
Video Specification |
|
|
Video Compression Standard |
H.264 |
|
Image Format |
PAL OR NTC D1/Half D1/CIF/ (default as 1 route D1) |
|
Frame rate |
1-25fps |
|
Voice Spec |
|
|
Format |
AMR |
|
GPS Spec |
|
|
Locating Accuracy |
10m 2DRMS |
|
Speed Accuracy |
0.1M/sec |
|
Data base accuracy |
100M |
|
Flash memory |
|
|
Blind area storage |
Flash memory 1400 pcs locate data |
|
Preset Road record |
Flash memory 8 line road data |
