Brand:AXIS
Model:V5925
Lens Focal length 4.4 - 132 mm
Horizontal field of view 62.8-2.3 °
Vertical field of view 37.0-1.3 °

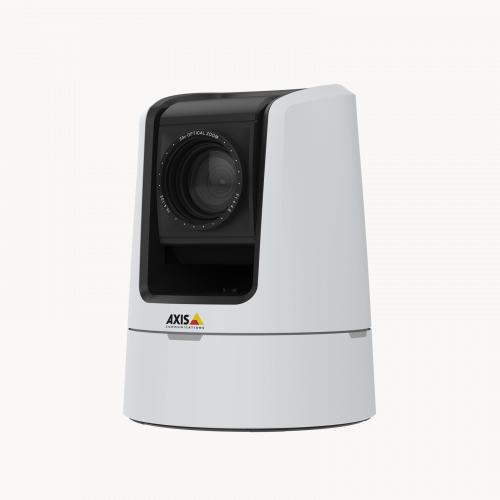

AXIS V5925 PTZ Network Camera
Broadcast-quality HDTV 1080p PTZ camera
AXIS V5925 PTZ Network Camera
Studio-grade audio with XLR inputs
VISCA and VISCA over IP support
Camstreamer 3-month trial included
3G-SDI and HDMI outputs
Ideal for auditoriums, classrooms, indoor sports events, and places of worship, AXIS V5925 offers excellent video quality and studio-grade audio for professional broadcasting and live streaming.
AXIS V5925 provides excellent image quality in HDTV 1080p at 60 fps and 30x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera.
This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, VISCA over IP allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser.
AXIS V5925 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It's packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Technical specifications
Models: AXIS V5925 60 Hz / AXIS V5925 50 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) 1.0 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature 0 to 40 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Analytics
Autotracking version Autotracking 2
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 4.4 - 132 mm
Horizontal field of view 62.8-2.3 °
Vertical field of view 37.0-1.3 °
Pan, Tilt, Zoom
Pan range +/- 170
Tilt range -20 to 90
Guard tour –
Optical zoom 30
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
System Integration
Audio detection Yes
Active tampering –
Alarm inputs/outputs 1/1
Network
PoE Class –
Security
Signed firmware Yes
Secure boot Yes
TPM –
Cables & connectors
AXIS TV5901 Control Board Adapter
Microphones
AXIS T8351 Mk II Microphone 3.5 mm
High-performance, low noise analog microphone for superior audio
AXIS TU1001-V Microphone
A robust microphone for indoor usage
AXIS TU1001-VE Microphone
Tools & extras
AXIS T8310 Video Surveillance Control Board
NAME AXIS REGION PART NUMBER
AXIS V5925 60 Hz US 01966-004
AXIS V5925 60 Hz JP 01966-005
AXIS V5925 60 Hz KR 01966-007
AXIS V5925 60 Hz BR 01966-012
AXIS V5925 50 Hz CN 01965-009
AXIS V5925 50 Hz AR 01965-008
AXIS V5925 50 Hz AU 01965-006
AXIS V5925 50 Hz IN 01965-113
AXIS V5925 50 Hz UK 01965-003
AXIS V5925 50 Hz EU 01965-002
