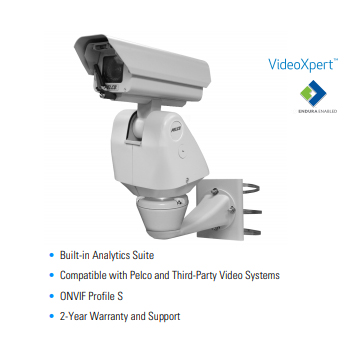

ES523L-05N,ES523L-15N,ES523L-15NP Pelco IP Positioning System
Product Features
? SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 lux on Select Models
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
? Up to Full HD 1080p and up to 30 Images per Second (ips)
? Three Automatic Defog Options
? Electronic Image Stabilization (EIS)
? Pan/Tilt and Enclosure with Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC)
? 16 Preset Tours, 256 Presets, 32 Window Blanks
? Integrated Windows Wiper with Configurable Delay and Shut-Off on Select Models
? Built-in Analytics Suite
? Compatible with Pelco and Third-Party Video Systems
? ONVIF Profile S
? 2-Year Warranty and Support

CAMERA/OPTICS
Specification SureVision 3.0 (ES523L)
Sensor Type 1/2.8-inch Type Exmor CMOS Sensor
Optical Zoom 30X
Digital Zoom 12X
Maximum Resolution 1920 x 1080
Lens
f/1.6 ~ f/4.7, focal length 4.3 mm (wide)-129.0 mm (tele)
Horizontal Angle of View 63.7°(wide) - 2.3° (tele)
Aspect Ratio 16:9
Light
Sensitivity
Color (33 ms) 0.03 lux
Color (250 ms) 0.008 lux
Mono (33 ms) 0.004 lux
Mono (250 ms) 0.001 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 50 dB gain
at 30 IRE (30% of signal level) with Sensitivity Boost OFF;
4X improvement to sensitivity with Sensitivity Boost ON
Day/Night Capabilities Yes
Shutter Range 1/1 ~ 1/10,000 sec
Signal-to-Noise Ratio >50dB
IR Cut Filter Yes
Wide Dynamic Range 130 dB
Iris Control Auto iris with manual override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Electronic Image Stabilization
(EIS) Yes (30X), No (20X)
GENERAL
Construction Die-cast, extruded and sheet aluminum;
stainless steel hardware
Finish Gray polyester powder coat
Operating Temperature –45° to 60°C (–50° to 140°F) for outdoor
applications or 74°C (165.2°F) absolute
maximum ambient per NEMA TS-2; within
two hours after power-up, the entire unit can
de-ice and be operational from a temperature of –25°C (–13°F)
Storage Temperature –20° to 60°C (–4° to 140°F) Operating Humidity
Unit Standard with IOP: 5 to 90% relative humidity (noncondensing)
Standard with IOC: 5 to 100% relative humidity (condensing)
Weight Pedestal Adapter Wall Mount Unit
Standard with IOP 9.0 kg (20 lb) 9.9 kg (22 lb)
With Wiper and IOP 9.5 kg (21 lb) 10.4 kg (23 lb)
With Wiper and IOC 10.0 kg (22 lb) 11.0 kg (24 lb)

Shipping
Standard with IOP 11.3 kg (25 lb) 12.6 kg (28 lb)
With Wiper and IOP 11.7 kg (26 lb) 13.1 kg (29 lb)
With Wiper and IOC 12.3 kg (27 lb) 13.6 kg (30 lb)
MODELS
ES523L-02N
ES523L-05N
ES523L-02W
ES523L-12N
ES523L-15N
ES523L-12W
ES523L-15W
ES523L-12NP
ES523L-15NP
ES523L-12WP
ES523L-15WP
