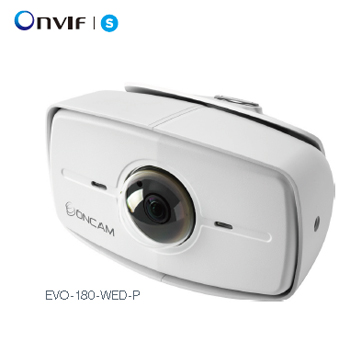

EVO-180-WED-P Pelco 180 fisheye camera

EVO-180-WED-P (White)
General
Lens Field of View
187° horizontal, 74° vertical (Panoramic Stream)
187° horizontal, 165° vertical (Fisheye Stream)
Image Sensor
4072 H x 3046 V, 12.4 MP
1/2.3 in. Sony CMOS Sensor
Lens 187° / F2.4
Day/Night IR Cut Filter
Automatic, Manual, External and Alarm Control
Minimum Illumination 0.1 lux
Frame Rate Up to 30 fps Up to 14 fps at max resolution Panoramic Stream
Video Motion Detection 8 configurable polygon regions
External Alarm 1x contact input, 1x contact output External IR Filter Control 1x contact input
Audio Connections
Audio in through 12-pin I/O connector, RTSP using G711 codec and ONVIF Profile S
Audio Input Level
Mic input level range, approximately 5 mV to 50 mV
Advanced Event Management
Configurable triggers: motion regions, external contact input, network down and HTTP GET.
Configurable actions: external contact output, SMTP frame upload, local recording, LED, IR filter controls
Networking
TCP/IP, HTTP, DHCP, DNS, NTP, SMTP, RTSP, UPnP and WS-Discovery Privacy
10 configurable privacy regions Local Recording
Event based with configurable pre and post recording (ONVIF Profile G not supported)
SD Card Built-in MicroSD card slot. Supports cards up to 256GB capacity. Speed class 10 or higher.
White Balance Range Auto White Balance (Range = approx. 2500 K ~ 8000 K) Electrical
Ports
RJ45 1000Base-TX PoE
12-pin I/O connector: 12 VDC input (optional), Audio in, Alarm in & out, External IR Filter Control in
Power Input
Power over Ethernet (PoE), IEEE standard 802.3af
12 VDC, 1.0 A (min) LPS, NEC Class 2 power supply.
Power Consumption (maximum)
7.20 W (PoE 48 VDC) / 6.96 W (DC 12 VDC)
Mechanical
Camera Mount
Surface and Pendant
Weight 2.60 kg (5.73 lbs)
Dimensions (L x W x H) 220 x 160 x 138 mm (8.7 x 6.5 x 5.4in.)
Housing Material Aluminum and Polymer
Environmental

Operating Temperature Range -40°C to 55°C (-40 °F to +131°F)
Ingress & Impact Protection IP66, IP67, IP68 (2m 30min), IP69K, IK10+
Certifications Approvals
IEEE802.3af, CE, AS/NZS CISPR 32:2015, CISPR 24:2010 (Class A) FCC, ICES-003,
UL 60950-1(ed.2), CAN/CSA C22.2 No. 60950-1-07, RoHS, EN50130-4:2011.
