Brand:AXIS
Model:AXIS Q1656-LE 02168-001
LensFocal length 3.9-10 mm
Horizontal field of view 113-47 °
Vertical field of view 60-27 °

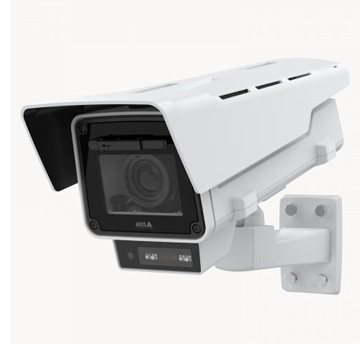

AXIS Q1656-LE 02168-001 Box Camera
Outstanding performance in 4 MP
Exceptional images with 1/1.8” sensor
Support for analytics with deep learning
Built-in cybersecurity features
Premium Axis Q-line camera functionality
Built-in wiper for snow and rain
With premium Q-line functionality and exceptional video quality even in poor light, AXIS Q1656-LE is based on the latest Axis system-on-chip (SoC) and offers support for powerful analytics based on deep learning on the edge.
The best of the best
AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. This premium Q-line camera offers impressive performance with 4 MP resolution at up to 60 fps. With a 1/1.8” sensor, it provides the best possible image quality no matter what. Plus, a built-in wiper guarantees great images even in snow and rain. It includes Lightfinder 2.0 to capture outstanding forensic images in low light scenes. And, the built-in camera rails allow you to easily adjust or change the lens to a larger tele lens or i-CS lens. Furthermore, with selectable IR wavelength, you can choose between covert or semi-covert LED illumination.
artpec8 chip
Powerful analytics capabilities
This high-performance camera is based on ARTPEC-8, the latest Axis system-on-chip (SoC). Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before - on the edge. Thanks to AXIS Object Analytics, it offers highly nuanced object classification enabling fast search in the VMS as well as reliable detection with fewer false positives. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

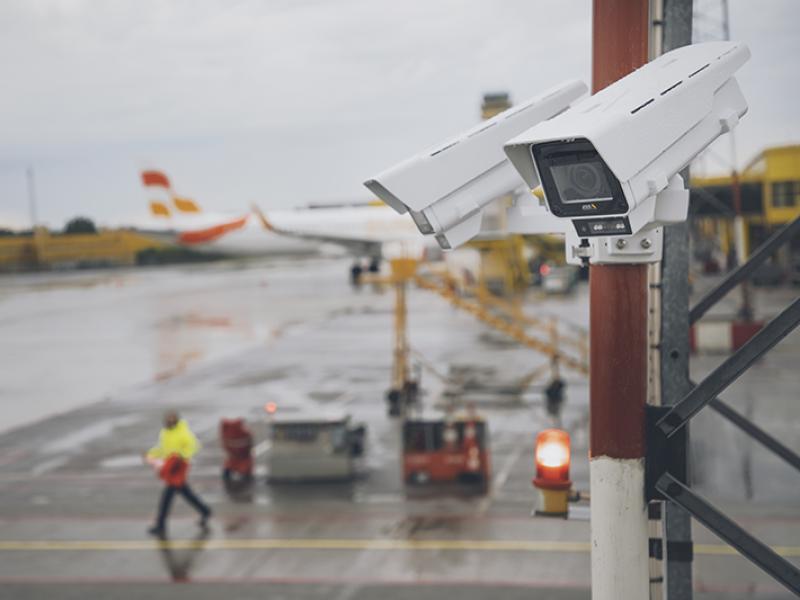

Axis camera on airport
Reliable and secure
Designed for easy and reliable installation, AXIS Q1656-LE is enclosed in a robust, impact-resistant IK10-rated casing. With IP66, IP67, NEMA 4X, and NEMA TS2 ratings, this water-resistant, weatherproof camera can also withstand winds up to 60 m/s. Including remote zoom and focus and support for PoE and redundant DC power, it offers flexible installation and maintenance. Plus, your data is safeguarded in the event of a power outage. It also includes surge protection (railway standard) and an intrusion switch for secure operation. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Technical specifications
Models: AXIS Q1656-LE
Camera
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
LensFocal length 3.9-10 mm
Horizontal field of view 113-47 °
Vertical field of view 60-27 °
Lens mount CS
Replaceable lens Yes
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 4
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10 Except for front window IK 8
IP rating IP66, IP67
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Power
Power (max) 25.5 W
Power (average) 11.2 W
DC input voltage 10-28 V
Accessories
AXIS T94R01P Conduit Back Box
