HVCP-4325I 4MP 25x IR Speed Dome Network Camera
Honeywell HVCP-4325I 25x IR speed dome
network camera has 4MP 25/30FPS HD
video images and provides an excellent,
accurate color reproduction effect. With
an IP66 rigid construction, these speed
domes are ideal choices for mid-high-end
surveillance monitoring.
HVCP-4325I supports 360° continuous rotation and is equipped with a 25X
auto-focus optics zoom lens, making it convenient and flexible for users to
view a target area. True Day/Night and true WDR work perfectly in a high
illumination contrast environment.
HVCP-4325I is equipped with IR LEDs, which can provide up to 150m
infrared illumination for the camera in all dark environments so that the
camera can present a clear b/w picture at night.
Honeywell HVCP-4325I provides digital defog, which can avoid the
interference of the external environment, especially suitable for monitoring
applications in parking lots, highways, outdoor areas, and other places.
Honeywell HVCP-4325I integrate the latest PTZ technology and design, it
is an ideal choice for a variety of security, monitoring applications, especially
for government, subway, airport, port, defense, campus, sports venues, parks,
scenic spots, communities, industry, and highways and other fields to provide
high-quality monitoring solutions
Features
1/2.8” Progressive Scan CMOS
? 30fps@2560x1440
? H.265
? 150m IR
? 120dB WDR
? 25x Optical Zoom
? Audio in/ Out
? Pan: 360° endless, Tilt: -15° ~90°
? Deep Learning Algorithm
? ONVIF
? PoE/ 24VAC
? IP66
SPECIFICATION
Model HVCP-4325I
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6(AGC ON)
B/W: 0.001Lux@F1.6(AGC ON), 0Lux(IR On)
Electronic Shutter 1/1 ~ 1/30,000s
Day/Night ICR, TDN
SNR > 52dB
WDR 120dB
Focus Length 4.8mm ~ 120mm, 25x Optical Zoom, 16x Digital Zoom
Field of View Horizontal:55° ~ 2.4° ; Vertical: 33° ~ 1.4° , Diagonal: 61.5° ~ 2.8°
IR Distance Up to 150m
PTZ
Pan Range 360° endless
Pan Speed 0.1° ~ 120° /s, preset speed: 120° /s
Tilt Range -15° ~ 90° (auto-flip)
Tilt Speed 0.1° ~ 80° /s, preset speed: 80° /s
Preset 300
Proportional Zoom Support
Patrol Scan 8
Pattern Scan 4
Power Off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Function PTZ Status Display, Preset Freezing, 3D Positioning, Scheduled Task
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG(Sub stream only)
Resolution
Main Stream: 25/30fps@2560x1440, 1920x1080, 1280x960, 1280x720
Sub Stream: 25/30fps@704x576(480), 640x480, 352×288(240)
Third Stream: 25/30fps@1920x1080, 1280x960, 1280x720, 704x576(480), 640x480, 352×288(240)
H.265 Encoding Main Profile
H.264 Encoding Baseline Profile/ Main Profile / High Profile
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio & Video Function
Image Enhancement HLC/BLC/3D DNR/Digital Defog
Image Settings Saturation, Brightness, Contrast, Sharpness, Gain, White balance
Privacy Mask 24 privacy masks
ROI 8 fixed regions for each stream
Video Analysis Motion detection, Video tampering alarm, Line crossing detection, Intrusion detection, Region entrance detection,
Region exiting detection, Unattended object detection, Object removal detection
Environment Audio
Noise Filtering Support
Audio Analysis Audio exception detection
Face Capture Capture up to 10 faces at the same time (Base on Deep Learning)
Support Angel: left to right -65° ~ +65° , tilt up and down -45° ~ +45°

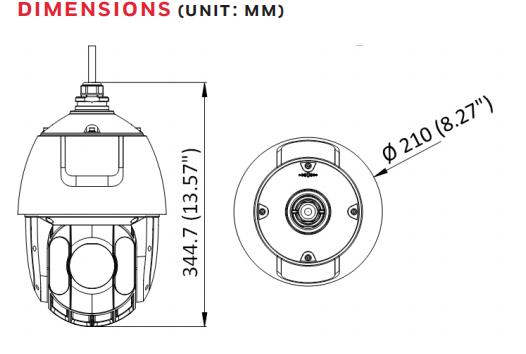

DIMENSIONS (UNIT：MM)
Model HVCP-4325I
NETWORK
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP,
IGMP, ICMP, DHCP, PPPoE, Bonjour
ONVIF ONVIF (Ver19.12, Profile S, Profile G, Profile T)
Web Browser IE11 or above
Simultaneous Live
View Up to 20 channels
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter, TLS1.2
Interface
Network 1 x RJ45, 10M/100M self-adaptive Ethernet port
Alarm 2 x Alarm in/ 1x Alarm out
Audio 1 x Audio in/ 1x Audio out
On-board Storage Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Reset Support
General
Operation
Temperature -30° C ~ +65° C (-22° F ~ 149° F)
Relative Humidity ≦ 90%, non-condensing
Power Supply 24VAC, PoE (802.3at)
Power Consumption Max. 24W (Max 9W for IR, Max 1.6W for heater)
Material Metal
Protection Level IP66
Dimension Φ210 mm x 344.7mm (Φ 8.27" x 13.57")
Weight Approx. 3.0kg (6.61 lb.)
*Note: Honeywell reserves the right, without notification, to make changes in product design or specifications
CCESSORIES
HVCP-ACM Celling mount bracket (Optional)
HVCP-AWM Wall mount bracket (Included）
RDERING
Model Product description
HVCP-4325I
4MP Speed Dome Network Camera, 1/2.8”CMOS, 25x Optical Zoom, 16x Digital Zoom, 150m IR, H.265/H.264, 30fps@2560x1440, TDN,
120dB WDR, DL Algorithm, Support 256GB onboard storage, ONVIF, IP66, 24VAC/ PoE
HVCP-ACM Celling mount bracket for HVCP-4325I, Aluminum alloy, 116.5×200mm, 600g
HVCP-AWM Wall mount bracket for HVCP-4325I, Aluminum alloy, 97X182X305mm, 1050g(Included in the package
