Detail

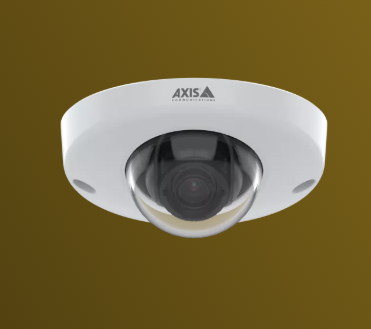

AXIS M3905-R Dome Camera
2 MP indoor onboard surveillance
Compact, rugged design
88° Horizontal field of view
Lightfinder and Forensic WDR
Axis Zipstream
Traffic Light mode
echnical specifications
DATASHEET (PDF)
Variants: AXIS M3905-R M12 3.6 mm / AXIS M3905-R RJ45 3.6 mm / AXIS M3905-R RJ45 2.8 mm / AXIS M3905-R M12 2.8 mm
Camera
Property description Property value
Lightfinder Lightfinder
Min illumination/ light sensitivity (Color) 0.07 lux
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (B/W) -
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 45
Day and Night functionality –
Electronic image stabilization –
Power
Property description Property value
Power (max) -
Power (average) -
Lens
Property description Property value
Focal length * 3.6 / 3.6 / 2.8 / 2.8 mm
Aperture * 2.0 / 2.0 / 1.5 / 1.5
Horizontal field of view * 87.6 / 87.6 / 106.6 / 106.6 °
Vertical field of view * 46.7 / 46.7 / 56 / 56 °
Lens mount M12
Replaceable lens Yes
Pan, Tilt, Zoom
Property description Property value
Digital Pan/Tilt Yes
Digital zoom Yes
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Audio
Property description Property value
Audio Support -
Built-in microphone -
Two-way audio –
System integration
Property description Property value
Audio detection –
Active tampering Yes
Alarm inputs/outputs -
AXIS Camera Application Platform Yes
Digital I/O –
Network
Property description Property value
PoE Class 1
Security
Property description Property value
HTTPS encryption Yes
IEEE 802.1X Yes
Signed OS Yes
General
Property description Property value
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -30 to 55 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP66, IP67
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Video Motion Detection
Part number for ordering
AXIS M3905-R RJ45 3.6 mm AR, AU, BR, CN, EU, JP, KR, UK, US 02501-001
AXIS M3905-R RJ45 3.6 mm, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02501-021
AXIS M3905-R RJ45 3.6 mm IN 02501-113
AXIS M3905-R RJ45 2.8 mm AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03118-001
AXIS M3905-R RJ45 2.8 mm, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03118-021
AXIS M3905-R M12 3.6 mm AR, AU, BR, CN, EU, JP, KR, UK, US 02502-001
AXIS M3905-R M12 3.6 mm, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02502-021
AXIS M3905-R M12 3.6 mm IN 02502-113
AXIS M3905-R M12 2.8 mm AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03119-001
AXIS M3905-R M12 2.8 mm, 10 pcs AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03119-021
