Brand：Yuluo
Model：YL-B5-3000-Y

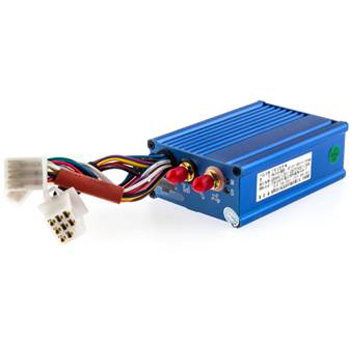

Beidou/GPS Vehicle GPS Tracker YL-B5-3000-Y is a multifunctional vehicle GPS tracker specially designed for trucks, logistics vehicle, buses and taxi, etc. It can connect any RS232 accessories to realize more function, for example magnetic card reader, camera, LCD display, fuel sensor, temperature sensor, etc.
(This model has got the NBTC certification from Thailand)
Functions
Two-way communication/Listen-in
SOS alarm
External power cut-off alarm
GPS antenna cut-off alarm
OTA firmware update
Geo-Fence with 108 rectangle area
8 routes of vehicle tracking fleet management
Geo-Fence with 108 rectangle area
Blind area data storage, up to 10,000 data log capacity
Build-in voice prompt(Text to speech broadcast Optional)
Vehicle Immobilization Control
GPS mileage report and mileage pulse report (Traffic black box)
Device self- diagnosis for maintenances
AGPS
Standard Package
Main Device 1 pc
Sticker for installation 2 pcs
GPS Antenna 1 pc
GSM Antenna 1 pc
I/O cable 1 pcs
All-in-one configuration cable 1 pc
Parameters
|
Specification |
|
|
Working Voltage |
9～36 V/DC |
|
Highest Voltage |
100V/DC |
|
Storage Battery Voltage Protect |
Lowest：8.5V（12V Battery） or 17V(24V Battery) Highest：36V |
|
Anti-reverse Power |
100V |
|
Working current |
Average:70mA@12V |
|
Backup battery |
320mAh |
|
Dimensions |
88x 62.5 x |
|
Unit net weight |
0.26kg |
|
Port |
|
|
Vehicle detecting port |
7 signal input (including 1 route Mileage pulse) |
|
Output |
1 route low level: 250 mA @ DC 12V |
|
extra equipment power supply interface |
1 route RS232 port, including output power DC5V/500mA |
|
Temperature |
Work: -30 ℃ ～ +70 ℃ Storage:-40 ℃ ～ +85 ℃ |
|
Humidity |
5％ ～ 95％ Non-condensing |
