Brand：Yuluo
Model：YL-F8-6805

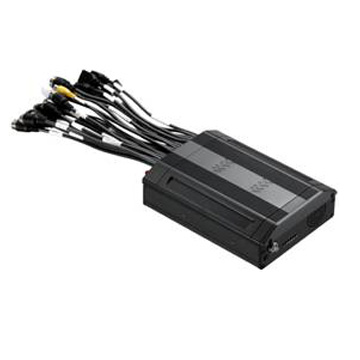

Hard Disk Mobile Digital Video Recorder YL-F8-6805
YL-F8-6805 is a 3G/4G functional Mobile Digital Video Recorder as well as GPS positioning technology specially designed for vehicle video surveillance. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression/decompression technology. It supports 8-channel DVR AHD video monitor with Beidou / GPS dual-mode and high-precision positioning.
Product Highlights
? Supports Hard disk for main recording
? Flash memory up to 10,000 pcs data storage.
? Support 1 route HD video monitor（1080P）
? 8 routes of video inputs, 4 routes of audio inputs to realize comprehensive video and audio surveillance.
? Unique design for hard disk protection and file storage to ensure the security of high-capacity data stored in the harsh automotive environment.
? Using 4-grade level of anti-shock protection for hard disk and with triple silicone cover to ensure the security against high frequency vibration and shock.
? Build-in high quality TTS (Text to speech) broadcast speaker.
? WCDMA、EVDO or TD-SCDMA,3 types of 3G GSM module can be choose.
? Build-in module for bus to announce station automatically.
? Supports travel logs/accident questionable information/alarm analysis.
? Multiple intelligence interfaces which can be integrated with the original car data recorder.
? WIFI module for video transmission.(Optional)
Functions
1、 Video function: adopt H.264 video compression technology; image resolution can be D1/Half D1/CIF.
2、 GPS Function: GSP location, Geo-fence, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and AGPS function.
3、 Alarm Events：SOS alarm, parking overtime alarm, over speed alarm, fatigue driving alarm, deviation from set route alarm, power failure alarm, low battery alarm, GPS failure alarm, GPS antenna open short circuit alarm, etc.
4、 Road detection functions: yaw, tips and segmentation speed limit alarm, entry / exit station report,
5、 Bus module functions: Adding bus module to enables the vehicle to announce stops, the driver automatically. With the public bus keyboard can be realized: announcement for stops manually, RFID driver attendance management, phone functions; with intelligent public bus announcer can be realized: announcement for stops manually, RFID driver attendance management. Vehicle operational information, route information, speed limit information, company information and calling function.
6、 Route Remote Update: Server sends command to device, it will automatically downloads the route, the line alignment, site Information, broadcast voice, segmented rate limit Update feature.
7、 Multimedia analysis function: video history playback by certain requirements
8、 Multi-server, Multi-IP: supports multiple IP address and can send message as well as the video to multiple servers.
9、 iCloud: Support for remote fault diagnosis and debugging, remote automatic program maintenance, remote parameter configuration, remote "iCloud" to protect functions such as terminal operation statistics.
Standard Package
Main Device 1 pcs
Key for hard disk 2 pcs
GPS and GSM Antenna 1 pcs each
All-in-one configuration cable 1 pcs
I/O cable 1 pcs
Parameters
|
Terminal Property |
|
|
Terminal |
Use Dual-core central processing chip |
|
Network |
EVDO /WCDMA/FDD-LTE/TDD-LTE |
|
Design |
Battery protection |
|
Circuit protection |
Three anti-paint protection |
|
Specification |
|
|
Working Voltage |
9～36 V/DC |
|
Highest Voltage |
100V/DC |
|
Storage Battery Voltage Protect |
Lowest：8.5V（12V Battery） or 17V(24V Battery) Highest：36V |
|
Anti-reverse Power |
100V |
|
Backup battery |
820mAh/3.6V |
|
Dimensions |
185×140×53 mm (L x W x H) |
|
GPS Performance |
|
|
Receiver Type |
Channel 50 |
|
Frequency L1 |
|
|
Signals GPS C/A code |
|
|
Configuration |
Time pulse 0.25Hz to 1kHz |
|
Cold Start(Autonomous) |
32S |
|
Warm Start(Autonomous) |
32S |
|
Hot Start |
1S |
|
Aided Start |
<3S |
|
Sensitivity |
Reacquisitions -160dBm |
|
Cold Start -146dBm |
|
|
Accuracy |
Horizontal position <2.5m Autonomous <2.0m SBAS |
|
RMS 30ns |
|
|
99% <60ns |
|
|
Velocity 0.1m/s |
|
|
Heading 0.5 degree |
|
|
Limits |
Acceleration ≤ 4g |
|
Altitude 50000m |
|
|
Velocity 500m/s |
|
|
GSM Performance |
|
|
Frequency |
UMTS/HSPA+： 850/900/1900/2100MHz GSM/GPRS/EDGE：850/900/1800/1900MHz |
|
Data |
GSM CS: UL 9.6kbps/DL 9.6kbps GPRS/EDGE: Multi-slot Class 12, Class B WCDMA PS: UL 384kbps/DL 384kbps HSDPA : 21Mbps Downlink (cat 14) HSUPA: 5.76Mbps Uplink (cat 6) Class 4 (+33dBm ±2dB) for EGSM/GPRS 850 Class 4 (+33dBm ±2dB) for EGSM/GPRS 900 Class 1 (+30dBm ±2dB) for GSM/GPRS 1800 Class 1 (+30dBm ±2dB) for GSM/GPRS 1900 Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD Band I Class 3 (+24dBm +1/-3dB) for UMTS 1900, WCDMA FDD Band II Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD Band V Class 3 (+24dBm +1/-3dB) for UMTS 900, WCDMA FDD Band VIII |
|
Port |
|
|
Input |
13 route inputs（ include 1 route impulse mileage level detector） |
|
Output |
3 route low level: 250 mA @ DC 12V |
|
Speech Interface |
1 Build-in microphone;1 route TTS speaker (output) |
|
Voice interface |
4 route voice inputs 1 route voice output(RCA) |
|
Video Interface |
8 route video input(switch to Aviation Plug) 1 route video output(RCA) |
|
Data Interface |
4 route RS232 port 2 route USB 2 route RS-485 2 route CAN 1 route RJ45 |
|
storage |
2.5"SATA Hard Diskx1 (up to 1TB) |
|
Camera power supply interface |
8 route 12V/3A port( Aviation Plug) |
|
Environment features |
|
|
Temperature |
Work: -30 ℃ ～ +70 ℃ Storage:-40 ℃ ～ +85 ℃ |
|
Humidity |
5％ ～ 95％ Non-condensing |
|
Picture Specification |
|
|
Picture Format |
JPEG |
|
Picture Resolution |
QVGA320×240、VGA640×480 |
|
Video Specification |
|
|
Video Compression Standard |
H.264 |
|
Picture Format |
D1/Half D1/CIF/QCIF |
|
Frame rate |
1-25fps |
|
Voice Spec |
|
|
Format |
AMR |
|
GPS Spec |
|
|
Locating Accuracy |
10m 2DRMS |
|
Speed Accuracy |
0.1M/sec |
|
Data base accuracy |
100M |
|
Flash memory |
|
|
Blind area storage |
1400 pcs locate data |
|
Flash memory |
10,000 pcs data storage |
|
Preset Road record |
Flash memory 8 line road data |
