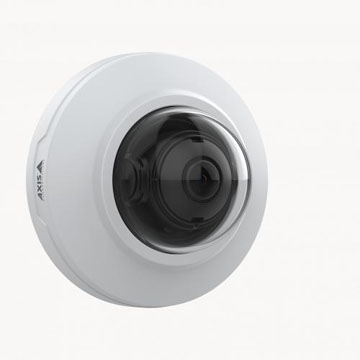

AXIS M3086-V 02374-001 4M安訊士網(wǎng)絡半球攝像機
Lens
Property description Property value
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 93 °
詳情
AXIS M3086-V 02374-001 4M安訊士網(wǎng)絡半球攝像機
Technical specifications
DATASHEET (PDF)
Models: AXIS M3086-V
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 93 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
Network
Property description Property value
PoE Class 2
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP42
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Video Motion Detection
Supported
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS People Counter
Insight beyond people counting
AXIS Queue Monitor
Don’t keep them waiting
Housings & cabinets
M30 dome clear
AXIS M30 Clear Dome
Replacement dome for AXIS M30 Cameras
Included with this product
Recommended for this product
AXIS M30 Smoked Dome
Replacement dome for AXIS M30 Cameras
Recommended for this product
AXIS TM3812 Tamper-resistant Cover
Tamper-resistant dome cover
Recommended for this product
AXIS TM3818 Casing Black
Casing for selected AXIS M30 Cameras
Recommended for this product
I/O devices
AXIS T6101 Mk II Audio and I/O Interface
Seamlessly add audio and I/O to your Axis cameras
Recommended for this product
AXIS T6112 Mk II Audio and I/O Interface
Seamlessly add a microphone and I/O to your Axis cameras
Recommended for this product
Media converters
AXIS T8640 PoE+ over Coax Adapter Kit
Cost-efficient migration to network video for smaller installations
Recommended for this product
AXIS T8645 PoE+ over Coax Compact Kit
Compact, cost-efficient single-channel migration to IP
Recommended for this product
AXIS T8646 PoE+ Over Coax Blade Kit
Cost-efficient migration to network video for larger installations
Recommended for this product
AXIS T8648 PoE+ over Coax Blade Compact Kit
Compact, cost-efficient multi-channel migration to IP
Recommended for this product
Mounts
AXIS T91A04 Camera Holder ?” NPS
For cameras with standard UNC thread
Requires additional accessory
Recommended for this product
AXIS T91A05 Camera Holder 1.5" NPS
For cameras with standard UNC thread
Requires additional accessory
Recommended for this product
AXIS T91A13 Threaded Ceiling Mount
Installation under ceiling tiles
Requires additional accessory
Recommended for this product
AXIS T91A23 Tile Grid Ceiling Mount
Flexible mount for drop-ceiling tile grids
Recommended for this product
AXIS T91A27 Pole Mount
For cameras with standard tripod thread
Requires additional accessory
Recommended for this product
AXIS T91A33 Lighting Track Mount
Flexible mount for lighting tracks
Recommended for this product
AXIS T91B53 Telescopic Ceiling Mount
For affordable and flexible ceiling installations
Requires additional accessory
Recommended for this product
AXIS T91E61 Wall Mount
For Axis fixed dome pendant kits
Requires additional accessory
Recommended for this product
AXIS T94B01P Conduit Back Box
For ?″ conduits and M20 pipes with UNC thread
Recommended for this product
AXIS T94B02D Pendant Kit
Pendant kit for Axis mounting products
Recommended for this product
AXIS T94B02M J-Box/Gang Box Plate
Mounting of cameras on junction boxes
Recommended for this product
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
Requires additional accessory
Recommended for this product
AXIS TM3101 Pendant Wall Mount
Clean, simple design for mini fixed domes
Recommended for this product
AXIS TM3201 from the left angle
AXIS TM3201 Recessed Mount
Discreet ceiling installation
Recommended for this product
AXIS TM3209 Recessed Mount
AXIS TM3209 Recessed Mount
For discreet video surveillance
Recommended for this product
Power
AXIS T8120 Midspan 15 W 1-port
Power and data to your network device
Recommended for this product
Switches
AXIS D8004 from the right angle
AXIS D8004 Unmanaged PoE Switch
Your perfect entry-level PoE switch
Recommended for this product
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
Recommended for this product
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
Recommended for this product
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Recommended for this product
Tools & extras
AXIS Safety Wire 3 m
Versatile safety wire
Requires additional accessory
Recommended for this product
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
Recommended for this product
HIDE DISCONTINUED PRODUCTS
Discontinued products
The following compatible products have been discontinued.
Power
AXIS T8124-E Outdoor Midspan 60 W 1-port
Video decoders
AXIS P7701 Video Decoder
